• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 303954

• • Brand: Aristona

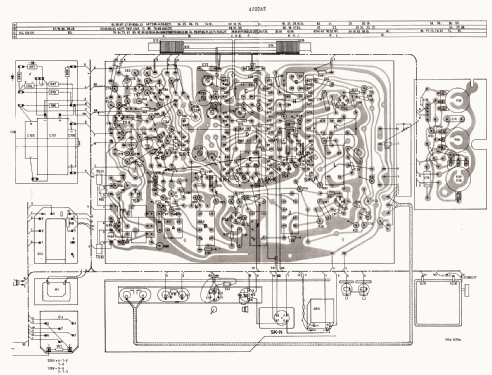

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF124 AF121 AF121 AF121 AF121 AC125 AC126 AC128 AC128 B30C750 AA119

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA4227AT - Aristona; Eindhoven

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 220 x 190 mm / 20.1 x 8.7 x 7.5 inch

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.

• Other Models

• Here you find 209 models, 174 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
