BS54

BS54; Armstrong Wireless (ID = 1861777) Radio BS54; Armstrong Wireless (ID = 1861778) Radio
Use red slider bar for more.
BS54; Armstrong Wireless (ID = 1861777) Radio

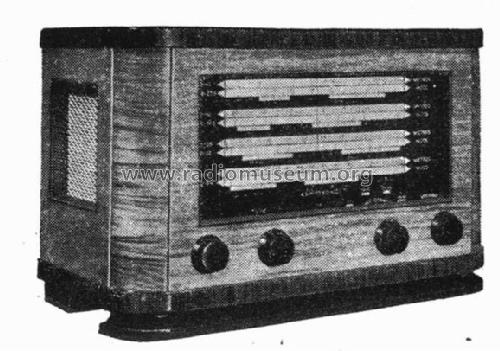

Armstrong Wireless: BS54 [Radio] ID = 1861777 578x406
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS54, Armstrong Wireless and Television Ltd.; London:
From 'Wireless World', Vol. 59, Jan. 1953, p. 44.

Country:  Great Britain (UK)
Manufacturer / Brand:  Armstrong Wireless and Television Ltd.; London
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6K8 6K7 6Q7 6V6 6X5
Main principle Super-Heterodyne (Super in general)
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 110; 200-250 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: BS54 - Armstrong Wireless and
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Short-wave overseas receiver, especially for listeners abroad requiring a sensitive and easy-to-handle short-wave set at a reasonable price.

Continuous coverage from 10.9 to 50 meters, divided into four bands. Long scales and flywheel-type tuning control.

The set is housed in an attractive walnut cabinet together with a high-grade loudspeaker. Negative feedback incorporated in the output stage.

Mentioned in The Wireless World, London (WW, 79) (Vol. 59, Jan. 1953, p. 44.)

Model page created by Karl Dilcher. See "Data change" for further contributors.



All listed radios etc. from Armstrong Wireless and Television Ltd.; London
Here you find 19 models, 17 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
