Norrik 1-4D

Norrik 1-4D; Arnesen, Nils F.; (ID = 358696) Radio
Use red slider bar for more.

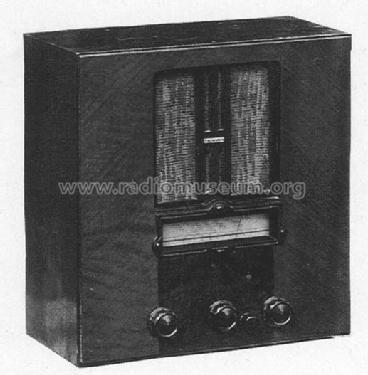

Norrik 1-4D; Arnesen, Nils F.; (ID = 358696) Radio
Arnesen, Nils F.;: Norrik 1-4D [Radio] ID = 358696 518x527
Select picture or schematic to display from thumbnails on the right and click for download.
For model Norrik 1-4D, Arnesen, Nils F.; Oslo:
Norwegian Historical Radio Society

Country:  Norway
Manufacturer / Brand:  Arnesen, Nils F.; Oslo
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 2A6 56 47 80
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch
Power out
from Radiomuseum.org Model: Norrik 1-4D - Arnesen, Nils F.; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 335 x 360 x 1460 mm / 13.2 x 14.2 x 57.5 inch
Price in first year of sale 170.00 NKr
External source of data Norwegian Historical Radio Society

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Arnesen, Nils F.; Oslo
Here you find 3 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
