• Year
  • 1942 ??
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 201353

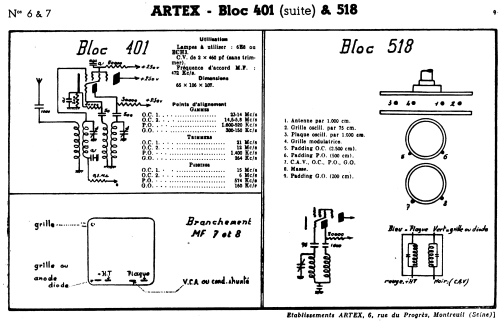

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Bloc 401 - Artex; Paris, Montreuil-Sous-
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 106 x 107 x 65 mm / 4.2 x 4.2 x 2.6 inch
  • Notes
  • Superhet-Spulensatz: Oszillator (incl.Padding) und Eingangskreis.
  • Literature/Schematics (1)
  • "Les blocks et leurs branchements" du Ct. Dupont
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
