10 Transistor AM/FM Portable 64R78; Arvin, brand of (ID = 1852936) Radio
Arvin, brand of: 10 Transistor AM/FM Portable 64R78 [Radio] ID = 1852936 800x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10 Transistor AM/FM Portable 64R78, Arvin, brand of Noblitt-Sparks Industries

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / C: 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 10 Transistor AM/FM Portable 64R78 - Arvin, brand of Noblitt-Sparks
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.35 x 5 x 3.25 inch / 212 x 127 x 83 mm
Notes

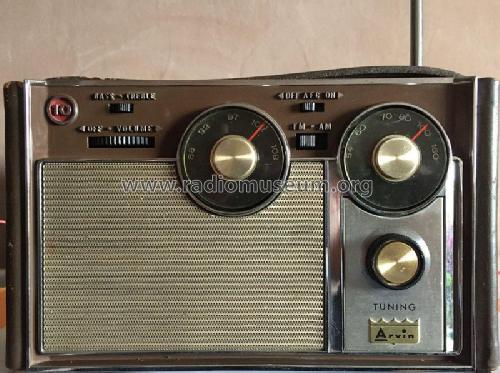

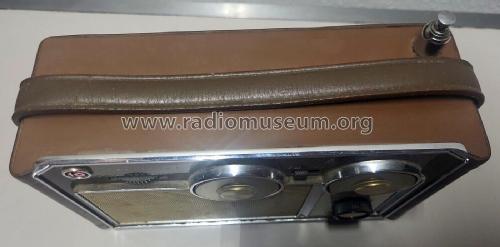

Portable AM/FM radio, sides and back are genuine cowhide over plastic and the top, front and bottom is plastic, some metal parts. Brown color is walnut. Telescoping and movable antenna. Carry handle is stiched leather. Tuning dial rotates both the AM and FM dial simultaneously. Battery power is six type "C" dry cells. Has earphone jack on the side.

Literature/Schematics (1) Photofact TSM Transistor Radio Series SAMS (Set TSM-34, Feb. 1964)

Model page created by Mark Skala. See "Data change" for further contributors.
