Arvin, brand of: 1237 Phantom Prince [Radio] ID = 1091166 933x1334

Select picture or schematic to display from thumbnails on the right and click for download.

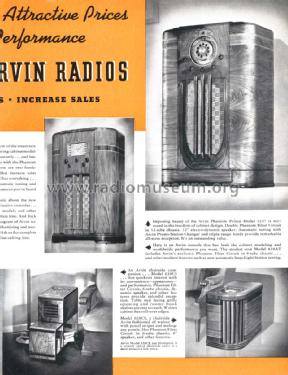

For model 1237 Phantom Prince, Arvin, brand of Noblitt-Sparks Industries:
By courtesy of guest Michael Feldt, indianaradios.com, USA who sent us a scan of the flier from 1937 for the 1937/38 Phantom models.

Country:

United States of America (USA)

Manufacturer / Brand:

Arvin, brand of Noblitt-Sparks Industries

Year: 1937/1938

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

12: 6K7G 6A8G 6A8G 6K7G 6E5 6J7G 6H6G 6K7G 6Q7G 6V6G 6V6G 5U4G

Main principle	Superhet with RF-stage; ZF/IF 455 kHz
Wave bands	Broadcast, Short Wave(s) and Police.
Details
Power type and voltage	Alternating Current supply (AC) / 105-125 Volt

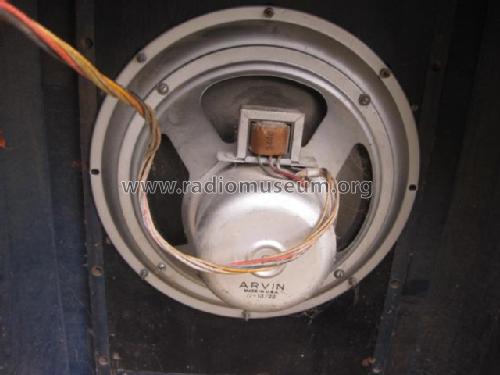

Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org	Model: 1237 Phantom Prince - Arvin, brand of Noblitt-Sparks
Material	Wooden case
Shape	Console with any shape - in general
Notes	The Arvin Phantom Prince model 1237 is featured in the flier "New 1938 Arvin Radios" from 1937 which emphasizes on the "Phantom Filter Circuit (in "Life" October 18th 1937) and in ads on "ten years of radio progress". Some models, like this one, feature also Arvin's "Presto-Station-Changer" for selecting one out of 10 stations - like with a telephone dial. The Arvin Phantom Prince model 1237 has a 12 inch speaker.
External source of data	Ernst Erb
Source of data	Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference	Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in	The Complete Price Guide to Antique Radios: Pre-War Consoles
