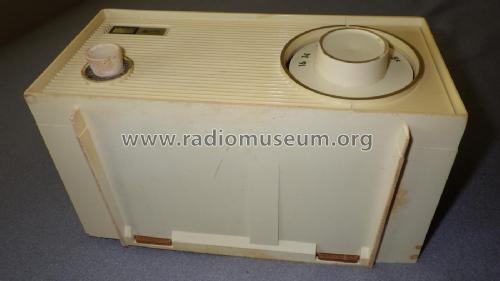

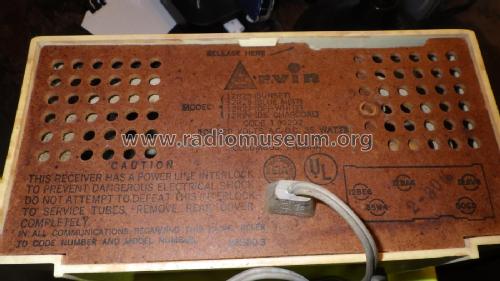

12R27 Table Radio

12R27 Table Radio; Arvin, brand of (ID = 2402356) Radio 12R27 Table Radio; Arvin, brand of (ID = 2402357) Radio
12R27 Table Radio; Arvin, brand of (ID = 2402358) Radio
Use red slider bar for more.
12R27 Table Radio; Arvin, brand of (ID = 2402356) Radio
Arvin, brand of: 12R27 Table Radio [Radio] ID = 2402356 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12R27 Table Radio, Arvin, brand of Noblitt-Sparks Industries

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 12R27 Table Radio - Arvin, brand of Noblitt-Sparks
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9 x 5 x 5 inch / 229 x 127 x 127 mm
Notes

Related Models: 12R23 (Sunset), 12R25 (Blue Mist), 12R27 (Off White), 12R29 (Charcoal)

Model page created by Vaughn Simon. See "Data change" for further contributors.



All listed radios etc. from Arvin, brand of Noblitt-Sparks Industries
Here you find 641 models, 427 with images and 515 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
