2123TM Ch= TE289-2
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 342171

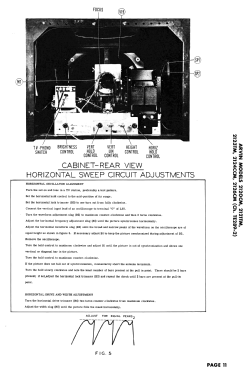

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6CB6 6J6 6CB6 6CB6 6CB6 6CB6 6AH6 6AU6 6AL5 12AU7 6BF5 12AU7 6SN7GT 6SN7GT 6AV5GT 6W4GT 1X2 5U4G 12LP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2123TM Ch= TE289-2 - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Arvin model 2123TM is a 12” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis TE289-2, VHF tuner AE23054-2 and picture tube 12LP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 120 folder 3 dated 1-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
