• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144906

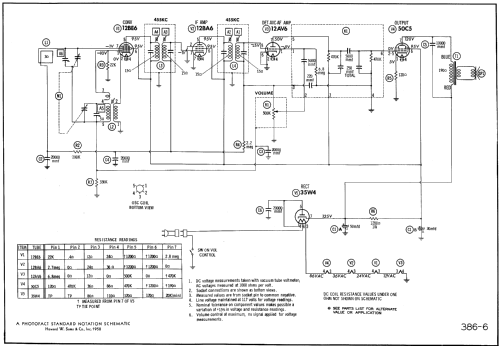

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 2572 Ch= 1.42200 - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Arvin Model 2572 is an AC/DC Operated 5 Tube AM Receiver.

  Model	Cabinet
  2572	Ivory or green
  2573	red or avocado



  Printed Circuit Board.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-58, Set 386, Folder 6)

• Literature/Schematics (2)
• Table Top Radios Vol. 4 Stein 2003 (page 52.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
