30R12 Ch= 1.48101

30R12 Ch= 1.48101; Arvin, brand of (ID = 142916) Radio
30R12 Ch= 1.48101; Arvin, brand of (ID = 745384) Radio
Use red slider bar for more.
30R12 Ch= 1.48101; Arvin, brand of (ID = 745384) Radio

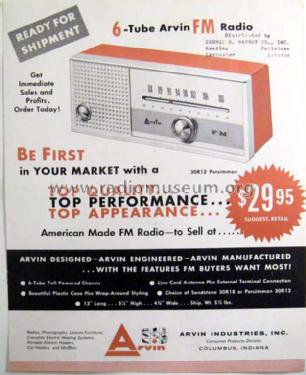

Arvin, brand of: 30R12 Ch= 1.48101 [Radio] ID = 745384 626x766
Select picture or schematic to display from thumbnails on the right and click for download.
For model 30R12 Ch= 1.48101, Arvin, brand of Noblitt-Sparks Industries:
Share Freely.

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12DT8 12BA6 12BA6 14GT8 35C5 35W4
Main principle Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 30R12 Ch= 1.48101 - Arvin, brand of Noblitt-Sparks
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 13 x 5.5 x 4.5 inch / 330 x 140 x 114 mm
Notes Color=Persimmon
Price in first year of sale 30.00 $
Source of data - - Manufacturers Literature
Circuit diagram reference Beitman Radio Diagrams Vol. 21, 1961
Mentioned in Collector's Guide to Antique Radios (6th edition)
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Date ?/61, Set 535, Folder 3)

Model page created by Egon Penker. See "Data change" for further contributors.
