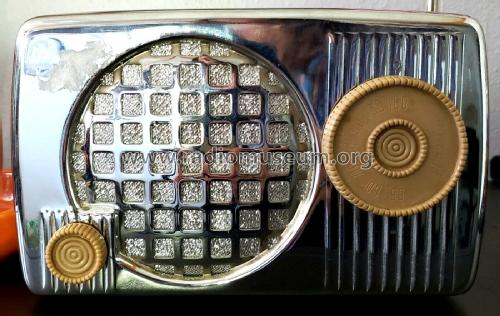

440T Ch= RE-278; Arvin, brand of (ID = 2149546) Radio
Arvin, brand of: 440T Ch= RE-278 [Radio] ID = 2149546 1400x1083
Select picture or schematic to display from thumbnails on the right and click for download.
For model 440T Ch= RE-278, Arvin, brand of Noblitt-Sparks Industries

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12SA7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 440T Ch= RE-278 - Arvin, brand of Noblitt-Sparks
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 8.2 x 5.2 x 4 inch / 208 x 132 x 102 mm
Notes Sold in colors: Fox Hunt Red, Willow Green, Burgundy, Sand Bronze, Banana Yellow and Ivory.
Price in first year of sale 15.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in Antique Radios, Johnson 1986
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (96-3)
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 38.)


All listed radios etc. from Arvin, brand of Noblitt-Sparks Industries
Here you find 643 models, 430 with images and 515 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
