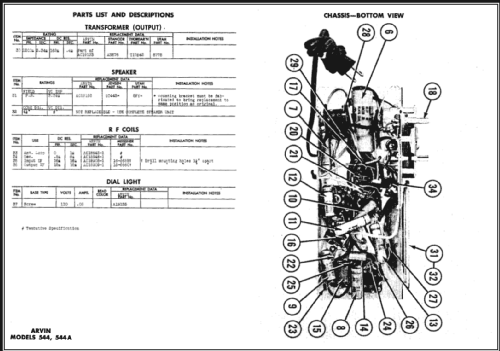

Select picture or schematic to display from thumbnails on the right and click for download.
For model 544A Ch= RE201, Arvin, brand of Noblitt-Sparks Industries:
American Radio design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 544A Ch= RE201 - Arvin, brand of Noblitt-Sparks
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9.5 x 6.5 x 5.5 inch / 241 x 165 x 140 mm
Notes Ivory color or in walnut (544) painted bakelite. Built-in loop with connection for external antenna if desired.
Net weight (2.2 lb = 1 kg) 9 lb 0 oz (9 lb) / 4.086 kg
Price in first year of sale 15.65 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 1, Folder 461-7)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (January 1946 page 36. March 1946 page 38, 139. February 1947 page 59.)
