• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33059

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.81 inch = 12.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 558 Ch=RE-204 RE204 - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

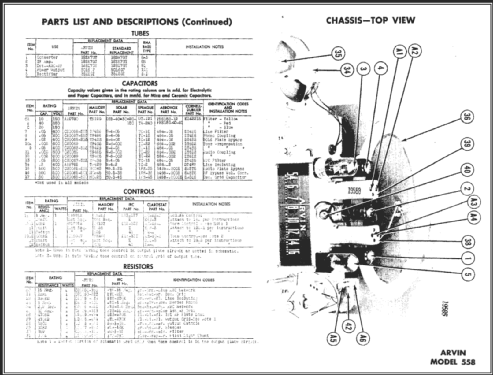

• Photofact Folder, Howard W. SAMS (Dat 8-46, set 3, folder 463-16)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (June 1946 page 85. August 1946 page 2.)

• Literature/Schematics (3)
• Table Top Radios Vol. 4 Stein 2003 (page 50.)
