Arvin, brand of: 61R58 Ch= 1.62402 [Radio] ID = 2504382 1400x1162
Select picture or schematic to display from thumbnails on the right and click for download.
For model 61R58 Ch= 1.62402, Arvin, brand of Noblitt-Sparks Industries

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: S95103 S95101 S95103 S95102 S95201 S95202 S95204 S95204 1N295
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 61R58 Ch= 1.62402 - Arvin, brand of Noblitt-Sparks
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8 x 6 x 3.8 inch / 203 x 152 x 97 mm

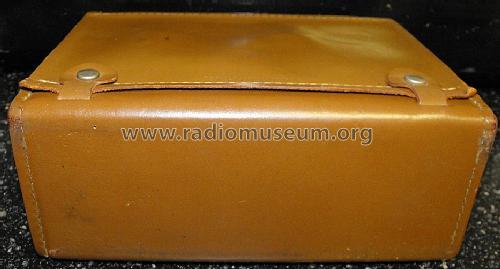

Notes Color=brown leather.
The Arvin Model 61R58 is a 8 Transistor Portable AM Receiver.
Circuit diagram reference Beitman Radio Diagrams Vol. 22, 1962
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-62, Set 602, Folder 4)

Model page created by Egon Penker. See "Data change" for further contributors.
