• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33094

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G 6E5 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 628CS Phantom Bachelor - Arvin, brand of Noblitt-Sparks

• Shape
• Console: Chairside Radio.

• Notes

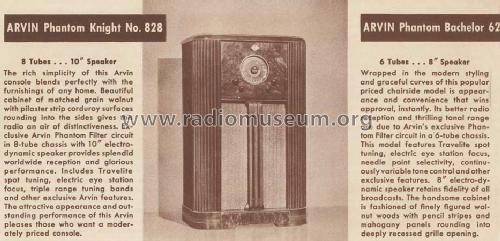

• The Arvin Phantom Bachelor Chairside model 628CS is featured in the flier "New 1938 Arvin Radios" from 1937 which emphasizes on the "Phantom Filter Circuit (in "Life" October 18th 1937) and in ads on "ten years of radio progress". The Arvin Phantom Bachelor Chairside model 628CS has a 8 inch speaker.

• Price in first year of sale
• 69.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (May, June, August 1937.)

• Other Models

• Here you find 694 models, 484 with images and 550 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
