• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1961 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130082

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N194 2N94 2N233 2N1251 2N1059 2N1059 1N295

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 62R23 Ch= 1.61701 - Arvin, brand of Noblitt-Sparks

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.25 x 4.25 x 1.4 inch / 57 x 108 x 36 mm

• Notes

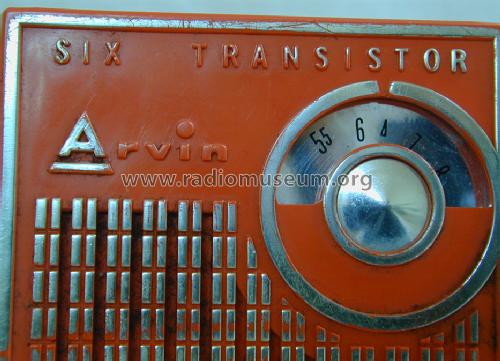

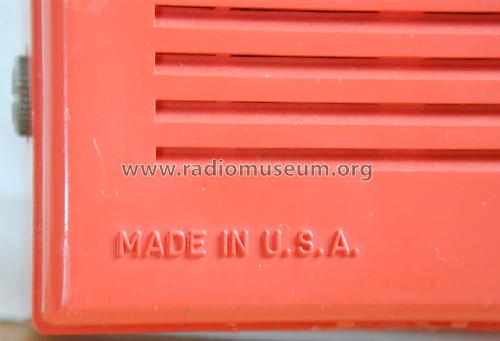

• Present in Beitman index (1926-1966). Similar to model 61R13. Arvin 62R23 6 Transistor pocket radio incl full size leather case with metal lock, Color: Sunset. Same model with same chassis in other colors: 62R26 in Mint Green; 62R29 in Black Pearl. All Made in USA

• Net weight (2.2 lb = 1 kg)
• 0.210 kg / 0 lb 7.4 oz (0.463 lb)

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 22, 1962

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
