9595 Ch= 1.47600; Arvin, brand of (ID = 605881) Radio

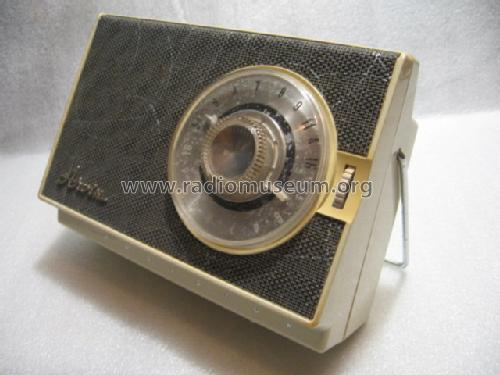

Arvin, brand of: 9595 Ch= 1.47600 [Radio] ID = 605881 700x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9595 Ch= 1.47600, Arvin, brand of Noblitt-Sparks Industries:
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Arvin, brand of Noblitt-Sparks Industries
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N194 2N233 2N233 2N1101 2N1101 2N1101 2N1101
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: 9595 Ch= 1.47600 - Arvin, brand of Noblitt-Sparks
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes The Arvin Model 9595 is a Battery operated Transitorized Portable AM Receiver.

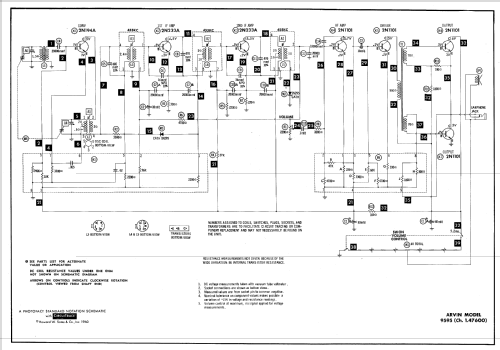

Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-60, Set 470, Folder 4)
