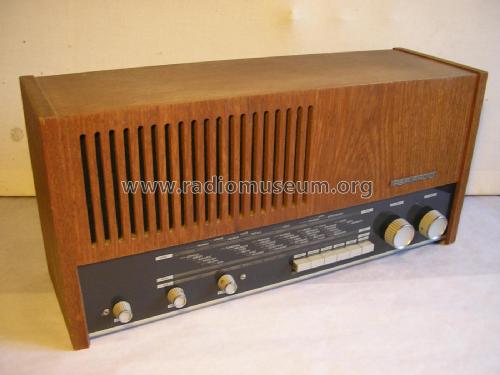

1179 T; Asa, Turku (ID = 1968123) Radio
Asa, Turku: 1179 T [Radio] ID = 1968123 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1179 T, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: B30C600 AF102 AF125 AF126 AF126 AF126 AC126 AF117 AC127 AC132 AC128 AC128 AC128 AC127 BA102 OA79 OA79 OA79 1,4St1 1,4St1 2,8St10
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

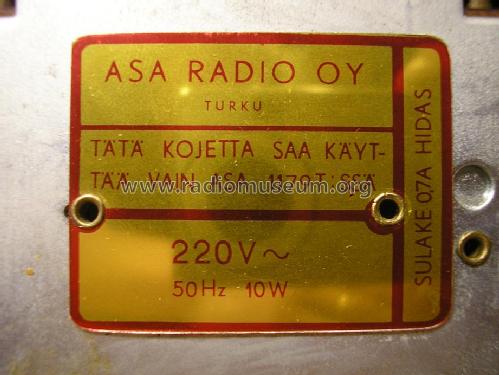

Power type and voltage Line / Batteries (any type) / 220; 8 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 1179 T - Asa, Turku
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 230 x 157 mm / 19.3 x 9.1 x 6.2 inch
Notes

Internal aerial for FM and ferrite aerial for AM. Speaker 220 x 130 mm.

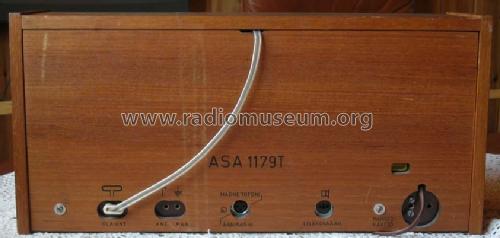

When batterys are to be used, line (power cord) socket must put into back plate to position marked "paristokäyttö", this connects batteries to use.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from FIN. See "Data change" for further contributors.
