1180TM

Asa, Turku

  • Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 174108

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 7 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

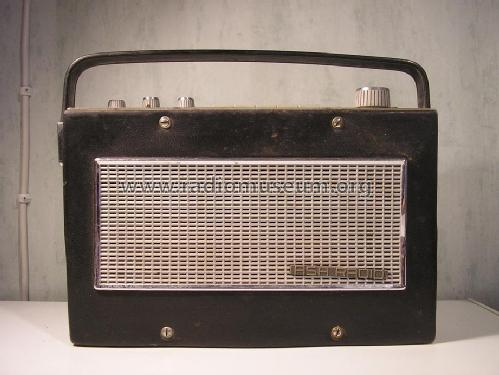

  • Model: 1180TM - Asa, Turku
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 275 x 175 x 80 mm / 10.8 x 6.9 x 3.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.4 kg / 5 lb 4.6 oz (5.286 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Jouko Laukkanen. See "Data change" for further contributors.
