2768

2768; Asa, Turku (ID = 1337193) Television 2768; Asa, Turku (ID = 2397894) Television
Use red slider bar for more.

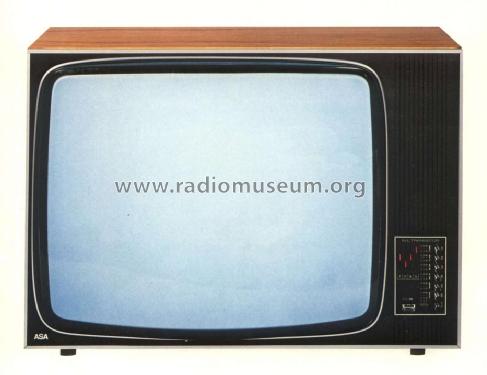

2768; Asa, Turku (ID = 1337193) Television
Asa, Turku: 2768 [Television] ID = 1337193 933x718
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2768, Asa, Turku:
Deutscher Prospekt 1973

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1973 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) 24:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 160-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 2768 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 650 x 460 x 330 mm / 25.6 x 18.1 x 13 inch
Notes

Schwarz-Weiss-Gerät mit 61 cm-Bildröhre, volltransistorisiert mit 4 ICs, 24 Transistoren, 37 Dioden und Gleichrichter.

Frontlautsprecher 10 x 18 cm.

Gehäuse in Teak oder Palisander mit anthrazitfarbener Front.

Siehe auch Modell 2769 mit 51 cm-Bildröhre.

Source of data -- Original prospect or advert

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
