361; Asa, Turku (ID = 284834) Radio
Asa, Turku: 361 [Radio] ID = 284834 541x397
Select picture or schematic to display from thumbnails on the right and click for download.
For model 361, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 EBL1 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 361 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 330 x 280 mm / 18.9 x 13 x 11 inch
Mentioned in -- Original-techn. papers.

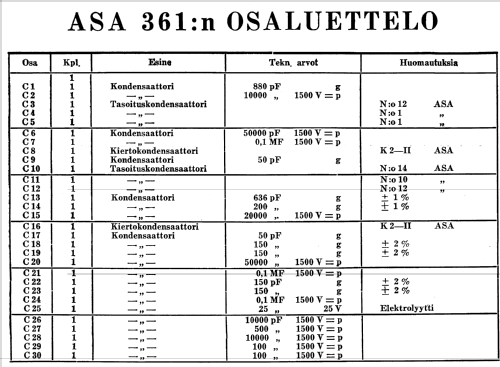

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lasse Nirhamo. See "Data change" for further contributors.
