402TL

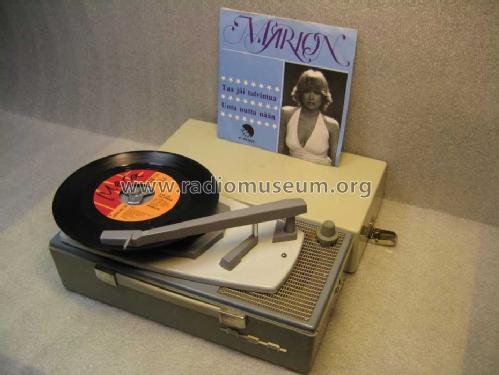

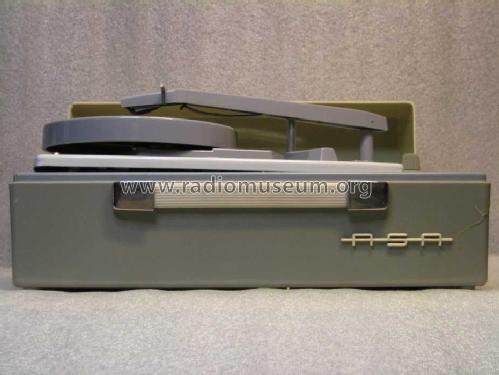

402TL; Asa, Turku (ID = 391468) R-Player 402TL; Asa, Turku (ID = 391467) R-Player

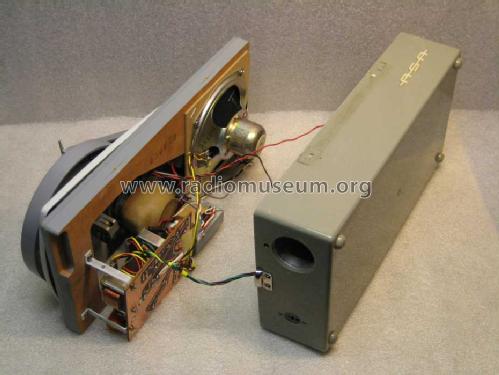

402TL; Asa, Turku (ID = 391469) R-Player
Use red slider bar for more.
402TL; Asa, Turku (ID = 391468) R-Player
Asa, Turku: 402TL [R-Player] ID = 391468 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 402TL, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1960 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4:
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out
from Radiomuseum.org Model: 402TL - Asa, Turku
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 150 x 130 mm / 11.8 x 5.9 x 5.1 inch
Notes Transistors: 2× OC75 and pair of PA. Record player mark is "Greencoat".
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 168.00 FMK
Source of data - - Data from my own collection

Model page created by Eero Ukkola. See "Data change" for further contributors.
