Octodesuperheterodyne 409

Octodesuperheterodyne 409; Asa, Turku (ID = 997661) Radio Octodesuperheterodyne 409; Asa, Turku (ID = 997662) Radio
Octodesuperheterodyne 409; Asa, Turku (ID = 997664) Radio Octodesuperheterodyne 409; Asa, Turku (ID = 997665) Radio

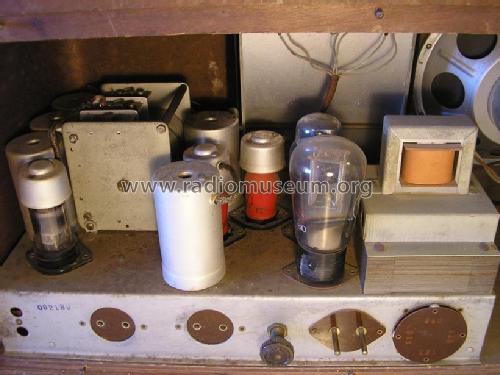

Octodesuperheterodyne 409; Asa, Turku (ID = 997666) Radio
Use red slider bar for more.
Octodesuperheterodyne 409; Asa, Turku (ID = 997661) Radio
Asa, Turku: Octodesuperheterodyne 409 [Radio] ID = 997661 820x615
Select picture or schematic to display from thumbnails on the right and click for download.
For model Octodesuperheterodyne 409, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 G470
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 225; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Octodesuperheterodyne 409 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 575 x 330 x 280 mm / 22.6 x 13 x 11 inch

Model page created by Juha Lahtinen Liljeroos. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
