587A (Mullard)

587A ; Asa, Turku (ID = 1583631) Radio

587A ; Asa, Turku (ID = 1583632) Radio

587A ; Asa, Turku (ID = 1583633) Radio

587A ; Asa, Turku (ID = 1583634) Radio

587A ; Asa, Turku (ID = 1583635) Radio
587A ; Asa, Turku (ID = 1179974) Radio 587A ; Asa, Turku (ID = 1180735) Radio
587A ; Asa, Turku (ID = 1180736) Radio 587A ; Asa, Turku (ID = 1180737) Radio
587A ; Asa, Turku (ID = 1180738) Radio 587A ; Asa, Turku (ID = 1180739) Radio
587A ; Asa, Turku (ID = 1180740) Radio 587A ; Asa, Turku (ID = 2058708) Radio
Use red slider bar for more.
587A ; Asa, Turku (ID = 1179974) Radio

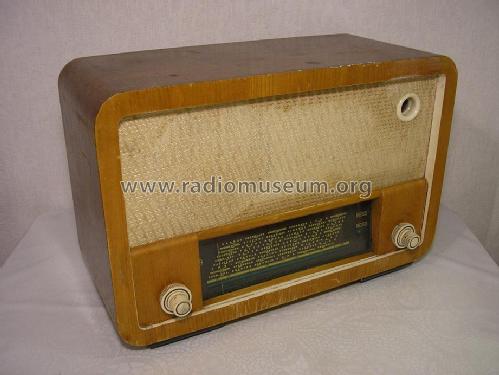

Asa, Turku: 587A [Radio] ID = 1179974 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 587A (Mullard), Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH35 EF39 EBC33 EL33 EM34 AZ31
Main principle Superheterodyne (common); ZF/IF 485 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 587A - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
