825P

825P; Asa, Turku (ID = 1331792) Radio

825P; Asa, Turku (ID = 1331793) Radio
825P; Asa, Turku (ID = 1303966) Radio 825P; Asa, Turku (ID = 1366345) Radio
825P; Asa, Turku (ID = 1366346) Radio 825P; Asa, Turku (ID = 1366347) Radio
825P; Asa, Turku (ID = 1366348) Radio 825P; Asa, Turku (ID = 1366349) Radio
825P; Asa, Turku (ID = 1366350) Radio
Use red slider bar for more.

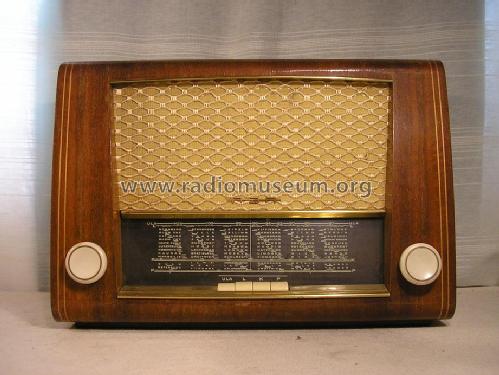

825P; Asa, Turku (ID = 1303966) Radio
Asa, Turku: 825P [Radio] ID = 1303966 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 825P, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: DF96 DC96 DF96 DK96 DF96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 485/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 1,5-2 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 825P - Asa, Turku
Material Wooden case

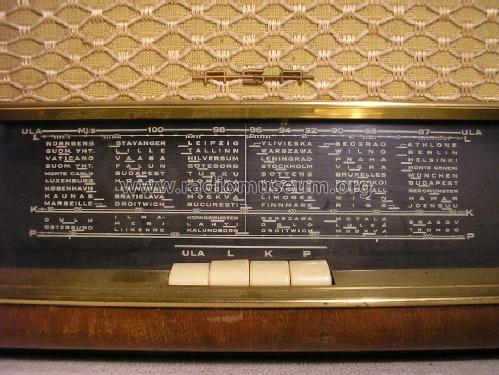

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 350 x 260 mm / 19.7 x 13.8 x 10.2 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.
