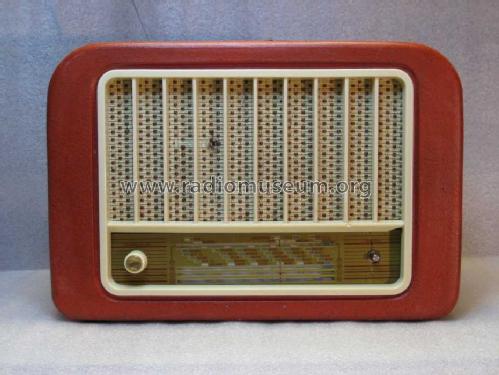

842M; Asa, Turku (ID = 381933) Radio
Asa, Turku: 842M [Radio] ID = 381933 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 842M, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner

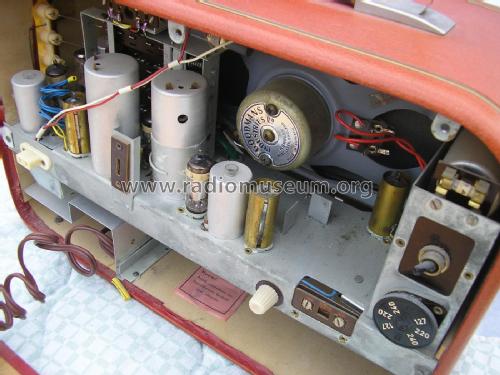

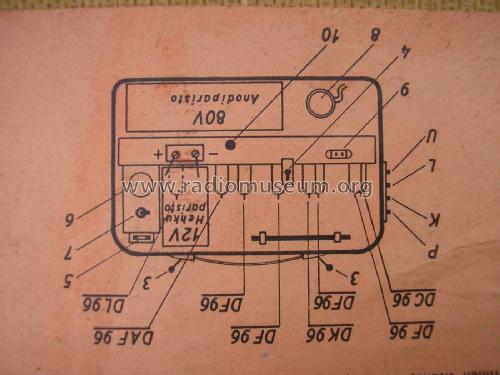

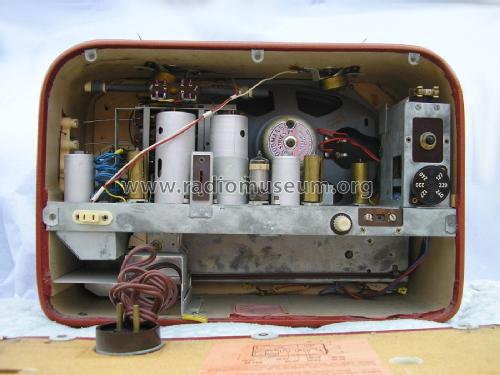

Valves / Tubes 8: DF96 DC96 DF96 DK96 DF96 DF96 DAF96 DL96
Main principle Superhet with RF-stage; ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 842M - Asa, Turku
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 390 x 250 x 150 mm / 15.4 x 9.8 x 5.9 inch

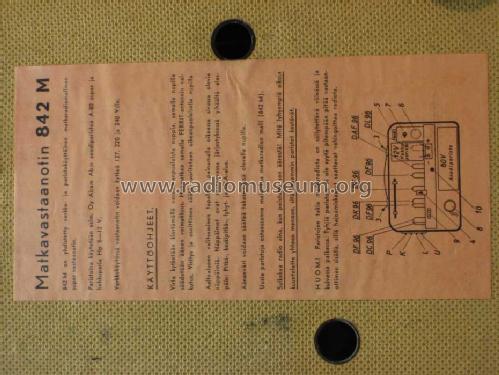

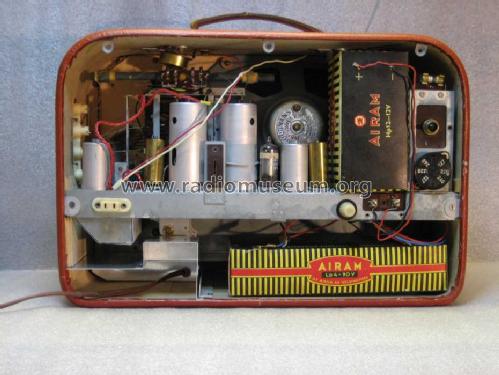

Notes Louis 6" x 10",Ferrite antennas for AM and stealt ribbon-antenna (not telescobe) for FM,dry batt. 12 V for Fil and 85V for Anode
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 27'500.00 FMK
Source of data - - Data from my own collection

Model page created by Eero Ukkola. See "Data change" for further contributors.
