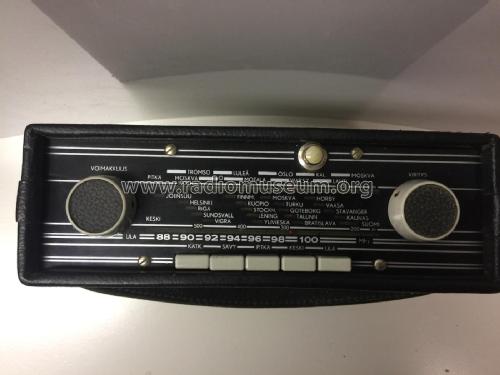

977 Junior
Asa Radio Oy; Turku
- Country
- Finland
- Manufacturer / Brand
- Asa Radio Oy; Turku
- Year
- 1963–1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299274
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.6 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 977 Junior - Asa Radio Oy; Turku
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 80 x 170 mm / 9.4 x 3.1 x 6.7 inch
- Notes
-
Similar to ASA 967 TM, but without jacks for external antenna and audio input.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Price in first year of sale
- 260.00 Fmk
- Author
- Model page created by Pentti Lamminen. See "Data change" for further contributors.
