For model Asavisio 2443, Asa, Turku:

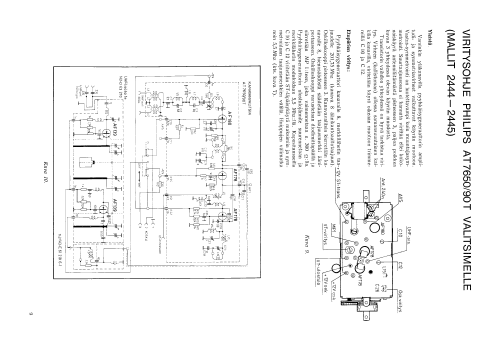

Service manual

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1966 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PCL86 PCL85 PCF802 PL500 PY88 DY87 A59-11W
Semiconductors (the count is only for transistors) 17: AF139 AF106 BF167 BF173 BC118 BC110 BC116 2N2924 BFY39 BC118 BF159 AF127 OA81 OA90 OA161 AA119
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Asavisio 2443 - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

VHF channels 2-11 CCIR, UHF channels 21-69 CCIR, OIR optional.

Semiconductors: 2 x AF139, AF106, 2 x BF167, BF173, BC118, BC110, BC116, 4 x 2N2924, BFY39/II, BC118, 2 x BF159, (+ AF127 in OIR feature).
OA81, 2 x OA90, 4 x OA161, 2 x AA119, P3/2D or V40C2, 2 x S10AR2, 1Z15T10.
Source of data - - Manufacturers Literature

Model page created by a member from FIN. See "Data change" for further contributors.
