Morse key for VRFK

Morse key for VRFK ; Asa, Turku (ID = 2321693) Morse+TTY Morse key for VRFK ; Asa, Turku (ID = 2321694) Morse+TTY
Use red slider bar for more.
Morse key for VRFK ; Asa, Turku (ID = 2321693) Morse+TTY
Asa, Turku: Morse key for VRFK [Morse+TTY] ID = 2321693 1244x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Morse key for VRFK, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1941 ? Category: Morse-Equipment & TTY, RTTY, TDD etc.
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Morse key for VRFK - Asa, Turku
Material Bakelite case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 55 x 38 x 267 mm / 2.2 x 1.5 x 10.5 inch
Notes

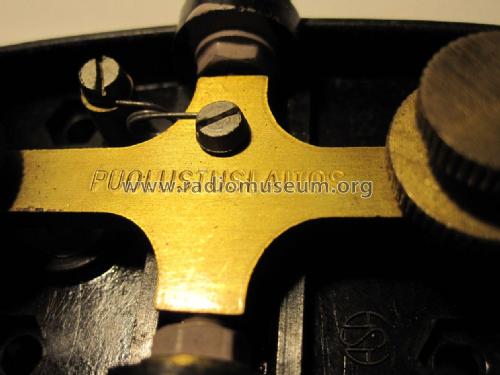

Manual Morse key for the Finnish armed forces during WW2. Used mainly in conjunction with the Field radio VRFK. Brass hardware inside the clamshell. Key arm embossed "PUOLUSTUSLAITOS" (Defence Forces). Completely insulated.

Net weight (2.2 lb = 1 kg) 0.150 kg / 0 lb 5.3 oz (0.33 lb)
Mentioned in -- Original-techn. papers.

Model page created by Thomas Anderssen. See "Data change" for further contributors.
