Portable record player with amplifier Cosmos IV (4)

Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620368) R-Player
Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620149) R-Player Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620362) R-Player
Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620363) R-Player Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620364) R-Player
Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620365) R-Player Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620366) R-Player
Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620367) R-Player
Use red slider bar for more.
Portable record player with amplifier Cosmos IV ; Asa, Turku (ID = 1620149) R-Player
Asa, Turku: Portable record player with amplifier Cosmos IV [R-Player] ID = 1620149 820x498
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable record player with amplifier Cosmos IV (4), Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1956/1957 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: EAF42 EL41
Semiconductors (the count is only for transistors) B250C90
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: Portable record player with amplifier Cosmos IV - Asa, Turku
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 405 x 270 x 170 mm / 15.9 x 10.6 x 6.7 inch
Notes
  1. Three speed record player of ASA own construction
  2. Speeds 78, 45, 33,3 rpm
  3. Build in audio amplifier with speaker
  4. Volume and tone controls
  5. Connector for external speaker
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 21'600.00 FIM

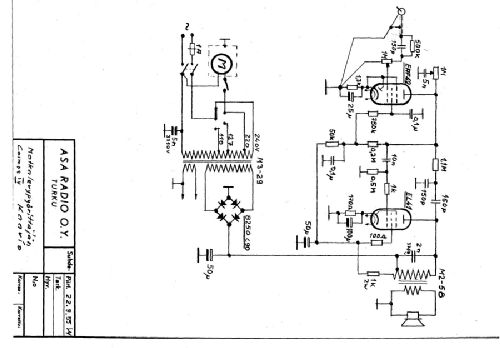

Literature/Schematics (2) - - Manufacturers Literature

Model page created by Ake Nyholm. See "Data change" for further contributors.
