Stereo-Master ASA 2786

Stereo-Master ASA 2786; Asa, Turku (ID = 1327676) Radio

Stereo-Master ASA 2786; Asa, Turku (ID = 1327677) Radio

Stereo-Master ASA 2786; Asa, Turku (ID = 928501) Radio

Stereo-Master ASA 2786; Asa, Turku (ID = 928503) Radio

Stereo-Master ASA 2786; Asa, Turku (ID = 928505) Radio
Stereo-Master ASA 2786; Asa, Turku (ID = 928455) Radio
Use red slider bar for more.
Stereo-Master ASA 2786; Asa, Turku (ID = 928455) Radio
Asa, Turku: Stereo-Master ASA 2786 [Radio] ID = 928455 933x503
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Master ASA 2786, Asa, Turku:

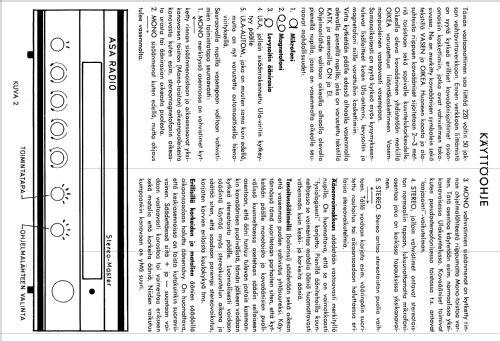

Scan of the Coverpicture of ASA 2786 Stereo-Master Users Manual in Finnish

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 27:
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Tuned circuits 11 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Stereo-Master ASA 2786 - Asa, Turku
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 410 x 120 x 260 mm / 16.1 x 4.7 x 10.2 inch
Notes - Stereo norm: FCC - Antenna input: 240 Ohm - Speaker impedance: 5-8 Ohm - Frequency coverage: 87,5 - 100 MHz - Output power: 2 x 20 W
Source of data - - Manufacturers Literature

Model page created by Matti Kaki. See "Data change" for further contributors.
