7 Transistor

7 Transistor ; Asibo; Hong Kong (ID = 735627) Radio 7 Transistor ; Asibo; Hong Kong (ID = 735626) Radio

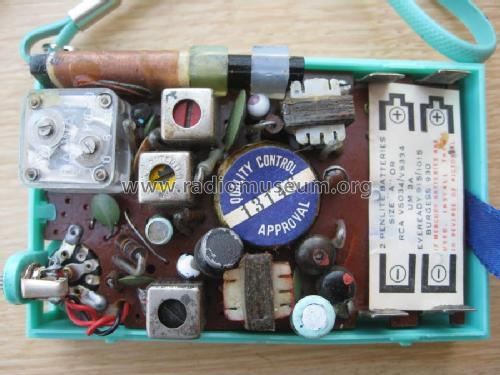

7 Transistor ; Asibo; Hong Kong (ID = 735628) Radio 7 Transistor ; Asibo; Hong Kong (ID = 735629) Radio
Use red slider bar for more.
7 Transistor ; Asibo; Hong Kong (ID = 735627) Radio
Asibo; Hong Kong: 7 Transistor [Radio] ID = 735627 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7 Transistor, Asibo; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Asibo; Hong Kong
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: unknown_tr 2SB77 2SB77
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: 7 Transistor - Asibo; Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 60 x 30 mm / 3.9 x 2.4 x 1.2 inch
Notes Asibo 7-Transistor, connection for earphone.
Net weight (2.2 lb = 1 kg) 0.150 kg / 0 lb 5.3 oz (0.33 lb)
Source of data - - Data from my own collection

Model page created by Gil Silva. See "Data change" for further contributors.
