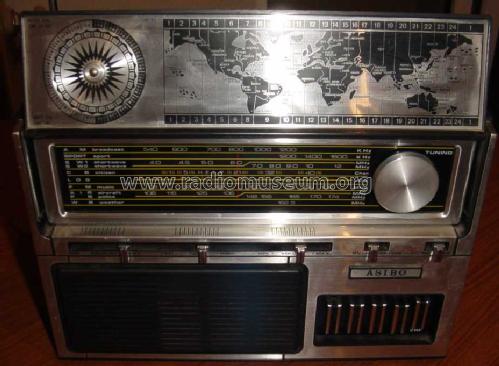

Asibo; Hong Kong: Multi Band [Radio] ID = 500821 930x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multi Band, Asibo; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Asibo; Hong Kong
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Multi Band - Asibo; Hong Kong
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 250 x 120 mm / 12.4 x 9.8 x 4.7 inch
Notes Asibo, Multi band; AM,CB,SW,FM,VHF, squelch control.
Source of data - - Data from my own collection

Model page created by Jose Luis Campayo-Soriano. See "Data change" for further contributors.
