Unknown

Unknown ; Asibo; Hong Kong (ID = 2309453) Radio Unknown ; Asibo; Hong Kong (ID = 2309454) Radio
Unknown ; Asibo; Hong Kong (ID = 2309455) Radio Unknown ; Asibo; Hong Kong (ID = 2309456) Radio
Unknown ; Asibo; Hong Kong (ID = 725153) Radio Unknown ; Asibo; Hong Kong (ID = 725154) Radio
Use red slider bar for more.

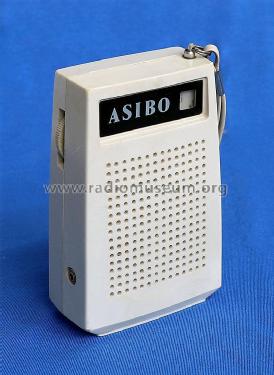

Unknown ; Asibo; Hong Kong (ID = 2309453) Radio
Asibo; Hong Kong: Unknown [Radio] ID = 2309453 800x1093
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unknown, Asibo; Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Asibo; Hong Kong
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Unknown - Asibo; Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 108 x 33 mm / 2.6 x 4.3 x 1.3 inch
Notes Paper tag for 9V battery usage lists the following codes:
BL-006P
Ever-Ready PP3
R-O-V 1604.

Model page created by Carlo Cossa. See "Data change" for further contributors.



All listed radios etc. from Asibo; Hong Kong
Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
