• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 189441

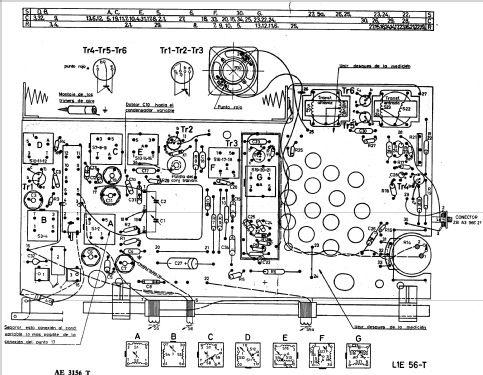

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF115 AF115 AF115 AC126 AC128 AC128 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.02 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: AE-3156-T - Askar, Ascar; Irún

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 111 x 43 mm / 6.9 x 4.4 x 1.7 inch

• Notes

• Askar AE-3156-T

  Esta radio es igual que la Philips Ibérica L1E56T.
  This radio receiver is similar to the Philips Ibérica L1E56T.

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Anuncio La Vanguardia Española octubre 1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Francisco Velez Cabezuelo. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 121 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Askar, Ascar; Irún
