AE-1113-T

AE-1113-T; Askar, Ascar; Irún (ID = 1811218) Radio AE-1113-T; Askar, Ascar; Irún (ID = 1811219) Radio

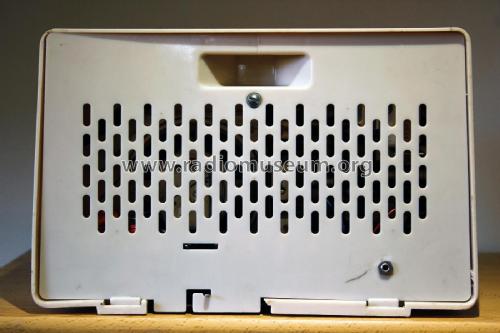

AE-1113-T; Askar, Ascar; Irún (ID = 1811220) Radio AE-1113-T; Askar, Ascar; Irún (ID = 1811221) Radio
AE-1113-T; Askar, Ascar; Irún (ID = 1811222) Radio
Use red slider bar for more.
AE-1113-T; Askar, Ascar; Irún (ID = 1811218) Radio
Askar, Ascar; Irún: AE-1113-T [Radio] ID = 1811218 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model AE-1113-T, Askar, Ascar; Irún

Country:  Spain
Manufacturer / Brand:  Askar, Ascar; Irún
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
schematic requested
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / R20: 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AE-1113-T - Askar, Ascar; Irún
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 185 x 120 mm / 11 x 7.3 x 4.7 inch
Notes

KW 16-60m

Model page created by Ruben Villar. See "Data change" for further contributors.
