Crystal Recording Head X-26

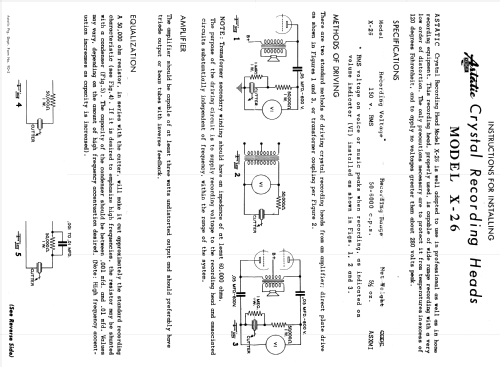

Crystal Recording Head X-26; Astatic Corp.; (ID = 1710867) Misc

Crystal Recording Head X-26; Astatic Corp.; (ID = 1710868) Misc
Crystal Recording Head X-26; Astatic Corp.; (ID = 1708530) Misc
Use red slider bar for more.
Crystal Recording Head X-26; Astatic Corp.; (ID = 1708530) Misc
Astatic Corp.;: Crystal Recording Head X-26 [Misc] ID = 1708530 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Crystal Recording Head X-26, Astatic Corp.; Conneaut (OH):
Eigenes Foto

Country:  United States of America (USA)
Manufacturer / Brand:  Astatic Corp.; Conneaut (OH)
alternative name

Omnitronics LLC
Year: 1950–1975 ?? Category: Miscellaneous (Other, Various) - see notes
Details Recording phonogr.-Disc Recorder
Power type and voltage No Power needed / 75 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Crystal Recording Head X-26 - Astatic Corp.; Conneaut OH
Material Metal case
Dimensions (WHD) 35 x 16 x 83 mm / 1.4 x 0.6 x 3.3 inch
Notes

Schneidedose für Schallfolienschneidemaschinen auf Piezokristall-Basis. Zu Betreiben mit 75V RMS Schneidspannung, mögliche Spitzen bis 280V gelten als erlaubt.

Cutting head used, for example, on the Wilcox-Gay Recordio A-87.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 12.80 USD

Model page created by Friedemann Wachsmuth. See "Data change" for further contributors.
