154 AN

154 AN; Astor brand, Radio (ID = 760845) Radio
154 AN; Astor brand, Radio (ID = 2441307) Radio 154 AN; Astor brand, Radio (ID = 2441309) Radio
154 AN; Astor brand, Radio (ID = 2441311) Radio 154 AN; Astor brand, Radio (ID = 2441312) Radio
154 AN; Astor brand, Radio (ID = 2441310) Radio 154 AN; Astor brand, Radio (ID = 2441308) Radio
Use red slider bar for more.

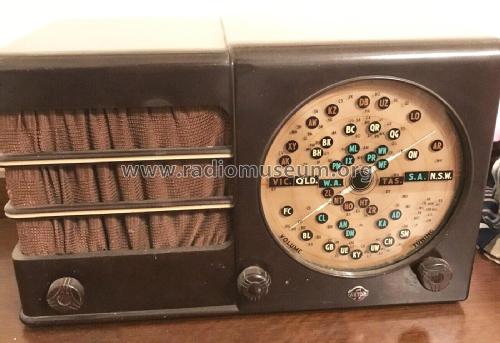

154 AN; Astor brand, Radio (ID = 2441307) Radio
Astor brand, Radio: 154 AN [Radio] ID = 2441307 1400x961
Select picture or schematic to display from thumbnails on the right and click for download.
For model 154 AN, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
eBay au item_183984665512

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6U7G 6B6G 6V6G 80
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 154 AN - Astor brand, Radio Corporation
Shape Tablemodel, with any shape - general.
Price in first year of sale 18.00 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. III

Model page created by Stuart Irwin. See "Data change" for further contributors.
