• Country
• Australia

• Manufacturer / Brand
• Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307405

• • alternative name: Radio Corp.of Australia

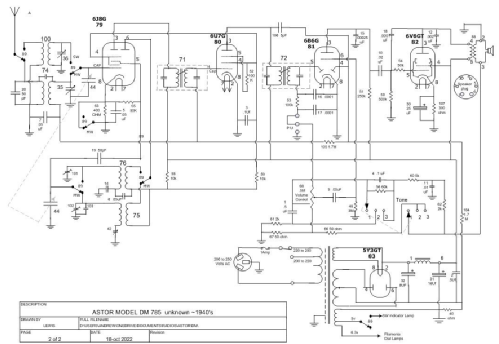

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J8G 6U7G 6B6G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 351 DMM - Astor brand, Radio Corporation

• Shape
• Console with any shape - in general

• Literature/Schematics (1)
• - - Manufacturers Literature (Astor Service Data.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
