• Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307404
    • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

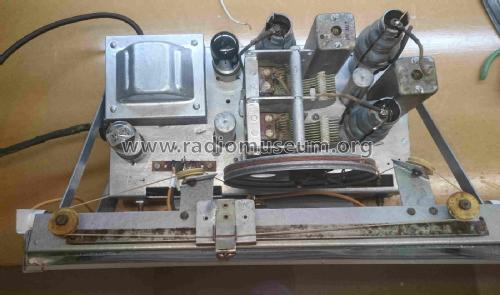

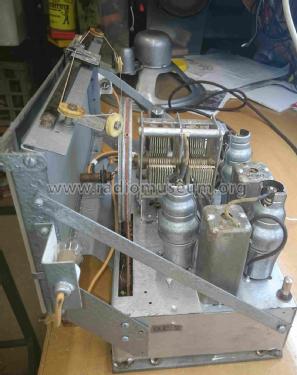

  • Model: 651 DM - Astor brand, Radio Corporation
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Astor Service Data)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
