654 CL (CLC)

654 CL ; Astor brand, Radio (ID = 2016055) Radio
Use red slider bar for more.
654 CL ; Astor brand, Radio (ID = 2016055) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6U7G 6B6G 6V6G 80
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 654 CL - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 29.00 Aus£

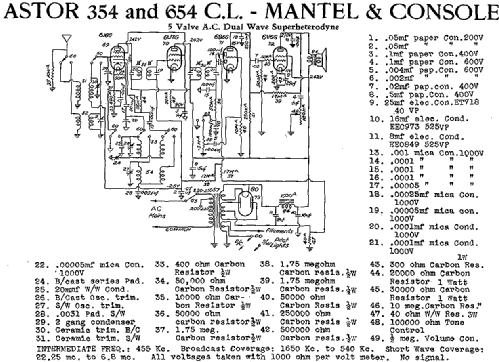

Circuit diagram reference Australian Official Radio Service Manual Vol. IV
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
