Airliner 25" A52L/8-CW Ch= Series 8

Airliner 25' A52L/8-CW Ch= Series 8; Astor brand, Radio (ID = 2006804) Television

Airliner 25' A52L/8-CW Ch= Series 8; Astor brand, Radio (ID = 2006805) Television

Airliner 25' A52L/8-CW Ch= Series 8; Astor brand, Radio (ID = 2006806) Television
Use red slider bar for more.
Airliner 25' A52L/8-CW Ch= Series 8; Astor brand, Radio (ID = 2006804) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1967 Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: 6HG8 6ES8 6Y9 6GW8 6U9 6X9 6GV8 6JW8 6CM5 6AL3 1S2 25RVP4/300
Semiconductors (the count is only for transistors) 1N3194 1N3194 1N3194 1N3194 1N66 1N66 1N295
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Airliner 25" A52L/8-CW Ch= Series 8 - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

This 25" TV tunes the standard Australian 13 VHF channels.

Literature/Schematics (1) - - Manufacturers Literature (Astor Series 8 Data Sheet.)

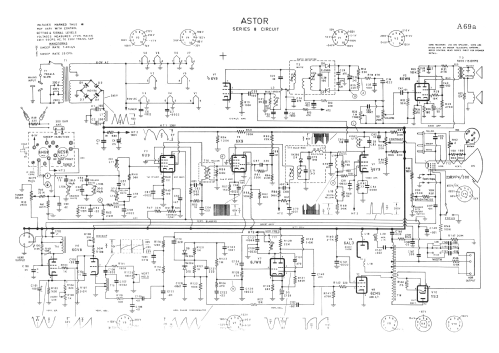

Literature/Schematics (2) -- Schematic (J. R. Publications "Television Service Handbook" page A69a)

Model page created by Martin Kent. See "Data change" for further contributors.
