ASJ

ASJ; Astor brand, Radio (ID = 2092737) Television
Use red slider bar for more.
ASJ; Astor brand, Radio (ID = 2092737) Television

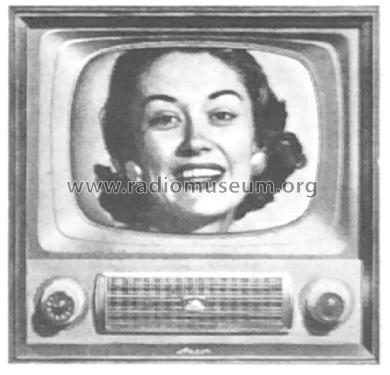

Astor brand, Radio: ASJ [Television] ID = 2092737 1400x1345
Select picture or schematic to display from thumbnails on the right and click for download.
For model ASJ, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1957 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: 6CW7 6BL8 6BX6 6BX6 6BX6 6BX6 6BL8 6BX6 6BX6 6AL5 6BM8 6BL8 12AU7 6BM8 6BL8 6AL5 6BL8 6CJ6 6R3 1S2 6N3 6N3 A43-64 or MW43-64 or MW43-69 or 17BP4A
Semiconductors (the count is only for transistors) OA60 or. OA70
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 190-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: ASJ - Astor brand, Radio Corporation
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

"The table model T.V. receiver Model "ASJ" is a Model "SJ" fitted into a different table model cabinet".

Available in Walnut & Mahogany.

Price in first year of sale 204.75 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin Model ASJ-1, 21/5/1957.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series, Vol. 1, 1962 & 1967, Page A56.)

Model page created by Martin Kent. See "Data change" for further contributors.
