Astor 5 (Clock Radio) SQ

Astor 5 SQ; Astor brand, Radio (ID = 537073) Radio

Astor 5 SQ; Astor brand, Radio (ID = 537074) Radio

Astor 5 SQ; Astor brand, Radio (ID = 537075) Radio

Astor 5 SQ; Astor brand, Radio (ID = 537076) Radio
Astor 5 SQ; Astor brand, Radio (ID = 473367) Radio Astor 5 SQ; Astor brand, Radio (ID = 473373) Radio
Astor 5 SQ; Astor brand, Radio (ID = 473368) Radio Astor 5 SQ; Astor brand, Radio (ID = 473374) Radio
Astor 5 SQ; Astor brand, Radio (ID = 473375) Radio Astor 5 SQ; Astor brand, Radio (ID = 473376) Radio
Use red slider bar for more.
Astor 5 SQ; Astor brand, Radio (ID = 473367) Radio

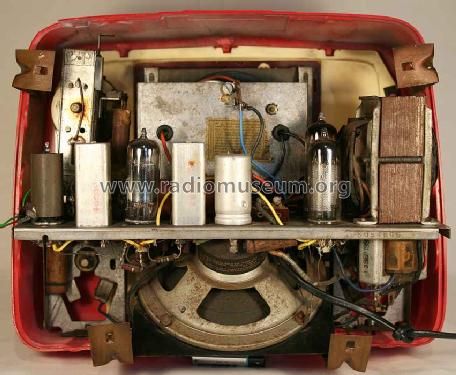

Astor brand, Radio: Astor 5 SQ [Radio] ID = 473367 768x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astor 5 (Clock Radio) SQ, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1954–1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BH5 6BD7 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 221-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Astor 5 SQ - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 11 x 9 x 6 inch / 279 x 229 x 152 mm
Notes

5 Valve Clock Radio. Front simply marked "ASTOR 5".

Colours available: Brown, Maroon, Ivory, Pale Blue & Red.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 32.05 AUS ­£
Source of data - - Data from my own collection

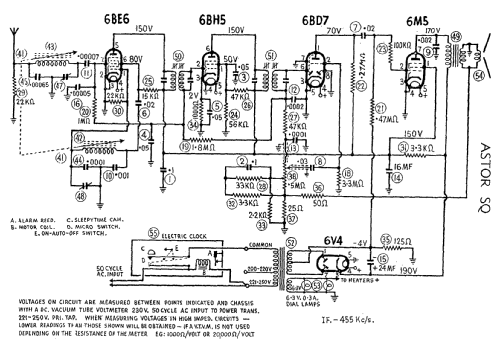

Circuit diagram reference Australian Official Radio Service Manual Vol. XIV
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin Model SQ-1, 29/11/1954.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A72.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 14, 1956, Page 34.)

Model page created by Keith Staines. See "Data change" for further contributors.
