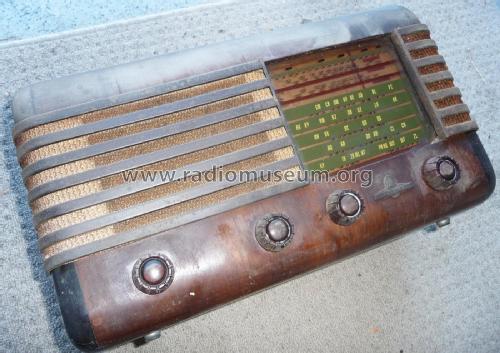

Astor brand, Radio: B52 FJM [Radio] ID = 2223788 1400x990
Select picture or schematic to display from thumbnails on the right and click for download.
For model B52 FJM, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

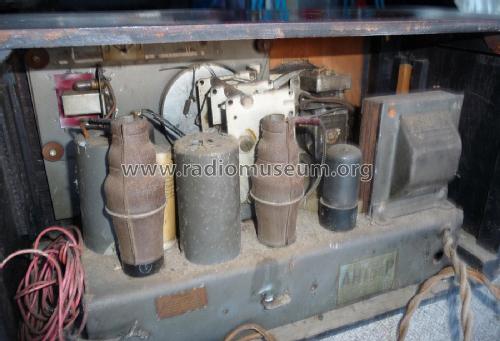

From eBay seller porsche10_3. Item #222832172443

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1940–1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6U7G 6B6G 6V6G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: B52 FJM - Astor brand, Radio Corporation
Shape Tablemodel, with any shape - general.
Notes This model has three band spread short wave ranges.
Circuit diagram reference Australian Official Radio Service Manual Vol. V
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
