Concertmaster G2B

Concertmaster G2B; Astor brand, Radio (ID = 883209) Radio

Concertmaster G2B; Astor brand, Radio (ID = 883210) Radio

Concertmaster G2B; Astor brand, Radio (ID = 883212) Radio

Concertmaster G2B; Astor brand, Radio (ID = 883208) Radio

Concertmaster G2B; Astor brand, Radio (ID = 883207) Radio
Concertmaster G2B; Astor brand, Radio (ID = 2336696) Radio Concertmaster G2B; Astor brand, Radio (ID = 883206) Radio
Use red slider bar for more.
Concertmaster G2B; Astor brand, Radio (ID = 2336696) Radio
Astor brand, Radio: Concertmaster G2B [Radio] ID = 2336696 1400x1437
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concertmaster G2B, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
From service manual front cover.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6AN7 6N8 12AX7 6M5 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers / Ø 8 inch = 20.3 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Concertmaster G2B - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 40 x 29 x 18 inch / 1016 x 737 x 457 mm
Notes

Stereogram-Radio with a automatic four-speed record changer and a 6 valve superheterodyne five band receiver incorporating band spreading of the 49, 31, 25 & 19 metre shortwave bands.

Record changer 4-speed Garrard Autoslim, however Collaro "Studio" changers were sometimes used due to a supply situation.

Has the same cabinet & appearance as Concertmaster model GRW.

Polished wooden cabinet by Gainsborough with Maple, Medium Walnut or Mahogany tonings finished in Polyester.

Price in first year of sale 156.45 AUS £

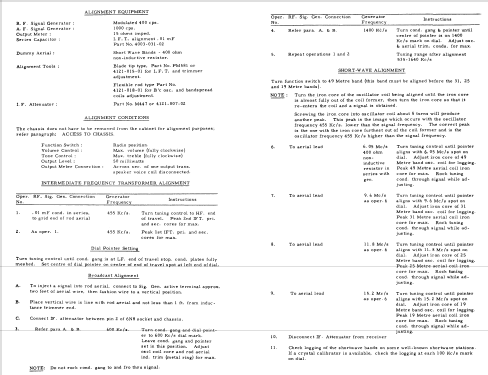

Literature/Schematics (1) - - Manufacturers Literature (Astor Service Data G 2B-1, 3/9/1962.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A48.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
