Deluxe Selectomatic SR

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1955 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6BA6 6AN7 6BA6 6AV6 6AQ5 6X4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Deluxe Selectomatic SR - Astor brand, Radio Corporation
Material Metal case
Shape Chassis only or for «building in»
Notes

See also Air Chief model SR.

Price in first year of sale 57.75 AUS £

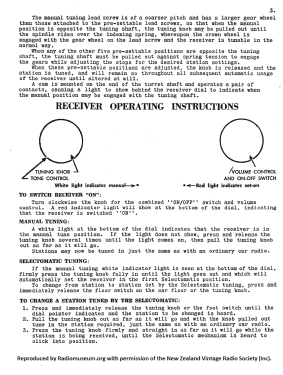

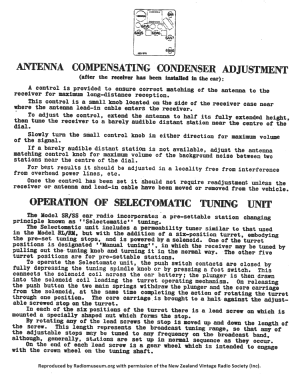

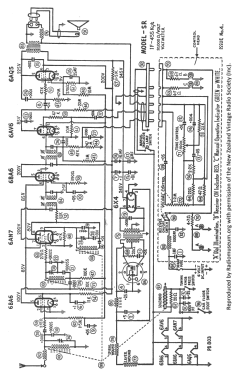

Literature/Schematics (1) - - Manufacturers Literature (Astor/EIL Technical Bulletins for Models SR/SS-1, 21/10/1955.)
Literature/Schematics (2) J.R. Publications Car Radio Service Handbook (Vol. 1, Page 41.)

Model page created by Martin Kent. See "Data change" for further contributors.
