Devon D31G/4A-BT (Series 4-A Chassis)

Devon D31G/4A-BT ; Astor brand, Radio (ID = 1920226) TV Radio
Devon D31G/4A-BT ; Astor brand, Radio (ID = 1921842) TV Radio
Use red slider bar for more.
Devon D31G/4A-BT ; Astor brand, Radio (ID = 1921842) TV Radio

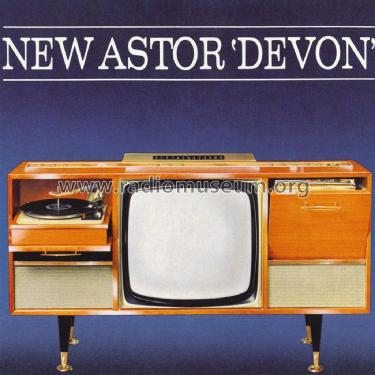

Astor brand, Radio: Devon D31G/4A-BT [TV Radio] ID = 1921842 1400x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Devon D31G/4A-BT (Series 4-A Chassis), Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1964 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 20: 6ES8 6BL8 6EH7 6EJ7 6DX8 6BL8 6GW8 6HS8 6GV8 6BL8 6CM5 6AL3 1S2 23HP4 6AN7 6N8 12AX7 6M5 6M5 6V4
Semiconductors (the count is only for transistors) 1N66 1N66 1N294 1N294 1N295 AR400 AR400 AR400 AR400
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200; 230; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Devon D31G/4A-BT - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 56 x 30 x 15 inch / 1422 x 762 x 381 mm
Notes

Combination 3 in 1 23" TV, AM radio & Auto Record Changer.
Standard Australian 13 Channel VHF tuner.

Radiogram chassis type Astor G11M, Issue 1.

Cabinet finishes: Maple, Walnut & Mahogany.

Price in first year of sale 355.95 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Astor Service Data Chassis Series 4A & 4B)
Literature/Schematics (2) J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1967, Page A67a.)

Model page created by Martin Kent. See "Data change" for further contributors.
