For model DLN, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
From DLN-1 Technical Bulletin

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6AN7 6BH5 6BH5 6AV6 6AQ5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: DLN - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Record changer 4-speed Collaro type RC4/56.

Cabinet finishes available in Walnut, Maple, Brown Mahogany, Rose Mahogany & Camphor Laurel.

Price in first year of sale 103.95 AUS £

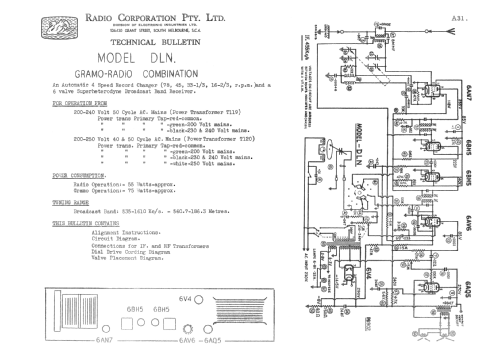

Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin DLN-1, 1/4/1958.)

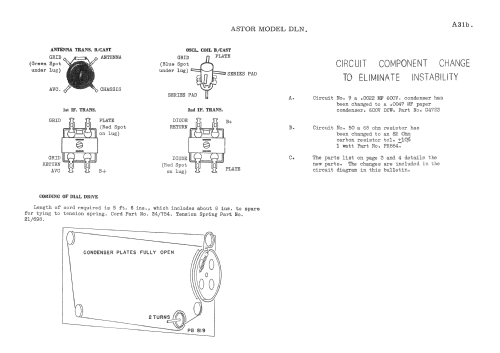

Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A31.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
