DNQ

DNQ; Astor brand, Radio (ID = 2011148) Radio

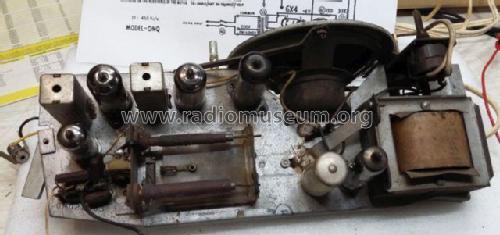

DNQ; Astor brand, Radio (ID = 2011144) Radio DNQ; Astor brand, Radio (ID = 2011147) Radio
Use red slider bar for more.
DNQ; Astor brand, Radio (ID = 2011144) Radio
Astor brand, Radio: DNQ [Radio] ID = 2011144 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model DNQ, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

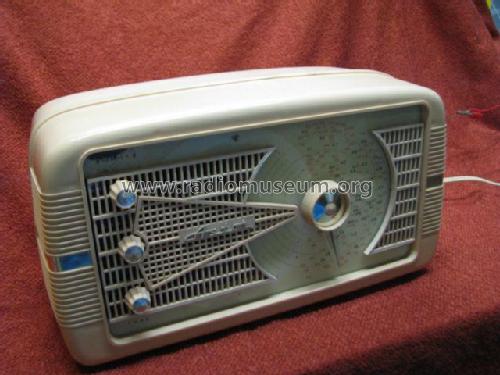

Front view after restoration

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BH5 6BD7 6M5 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: DNQ - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Permeability tuning.

Colours available: Coral, Dark Green, Grey, Blossom Pink, Cream, Chinese Red, Lime, Cherry Red, Green, Tan & Blue.

Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin Model DNQ-1, 10/4/1958.)
Literature/Schematics (2) -- Schematic (J.R. Publications Radio Service Handbook R.V. Series Vol. 1, 1963, Page A35.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
